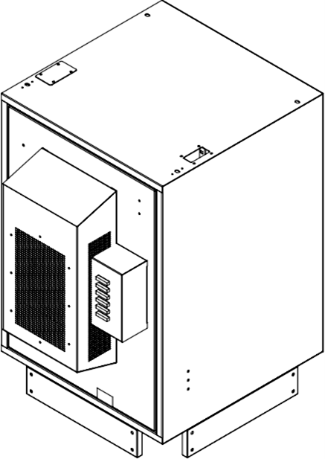

Battery Cabinet

U.P.S SV500A

INPUTS

The device has five key input parameters for monitoring:

1. Internal Temperature – Monitors the temperature inside the device.

2. External Temperature – Tracks the surrounding environment’s temperature.

3. Fire Alarm Detection – Detects fire-related events.

4. Open Door Alarm Detection – Identifies when a door is left open.

5. Water Alarm Detection – Monitors for water-related emergencies.

OUTPUTS

The device controls nine relay outputs for various actions:

1. First TEC Cooler – Engages the first thermoelectric cooler.

2. Second TEC Cooler – Engages the second thermoelectric cooler.

3. Free Cooling Fan – Activates the fan for passive cooling.

4. Internal Fan of the Conditioner – Controls the internal fan for precise temperature regulation.

5. Light for Open Door – Illuminates when a door is open.

6. Open Door Alarm – Alerts when a door is open.

7. Fire Alarm – Triggers an alarm for fire detection.

8. Water Alarm – Triggers an alarm for water detection.

9. High Temperature Alarm – Activates when temperatures exceed safe levels.

SMART TEMPERATURE LOGIC

The device employs a sophisticated temperature control logic to optimize cooling operations. Depending on the monitored temperature values, it dynamically decides whether to:

- Run the TEC Coolers for precise temperature control.

- Activate the Free Cooling Fan for energy-efficient passive cooling.

CONTROL METHODS

The device offers three methods for configuring and controlling its settings: It also supports Over-The-Air (OTA) updates for software upgrades and features a web page for comprehensive control and configuration of device settings.

1. Touch Screen – Provides an intuitive interface for direct control.

2. Ethernet Port – Enables wired connectivity for remote management.

3. Wi-Fi – Facilitates wireless control for added convenience.

All settings, including temperature thresholds and other device parameters, can be modified through a secured login page to ensure restricted access.

HARDWARE SPECIFICATIONS

Microcontroller

RTC Module

Includes a Real-Time Clock (RTC) module for accurate time tracking.

SD Card Support

Allows logs and event data to be saved locally for future reference.

Battery Cabinet Specifications	Supplier’s feedback
Battery cabinet brand name	Battery Cabinet U.P.S SV500A
Max number of Lithium strings cabinet can host	5 String
Ready with 19inch rack for lithium batteries?	Yes
Can be stackable with the rectifier cabinet on 1 foot print ...yes or no?	Yes
Specify Cooling system type	Ultra TEC cooler (Separated to two modules) & Free cooling with fan.
Cooling system capacity	340W ( 2 module *170)
DC or AC Cooling system	DC cooling system
PWR consumption for the DC cooling system in watt	500W
proposed cooling system can sustain heat dissipation for 5 strings of lithium batteries, yes or no?	Yes
Door contact sensor	Exist
Smoke sensor	Exist
Cabinet system IP protection	65
High temperature sensor	Exist
Battery Cabinet dimension (H,W,D) (as a separate compartment)	(H,W,D) (90,65,65)
Battery cabinet weight in KG (as a separate compartment)	85KG

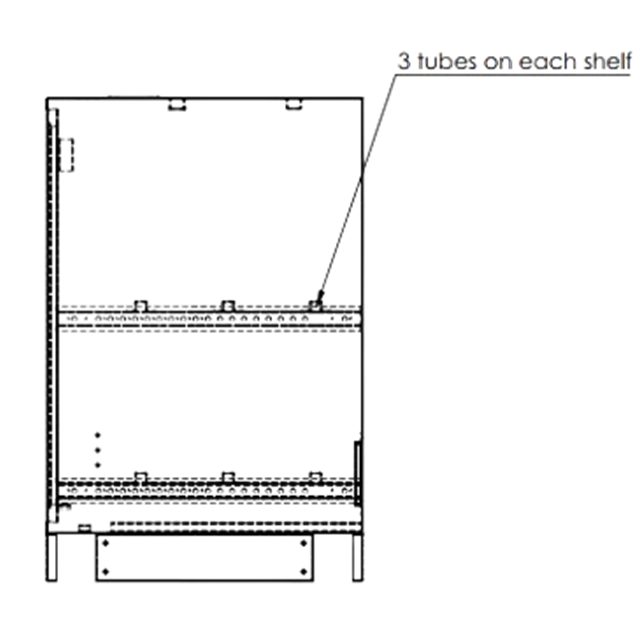

Max Battery AH shelf can withstand	200A , Horizontal
Can host 2 strings Lead Acid batteries 170 AH?	Yes
full warranty on the whole system for manufacture defects covering repair and replacement and spare parts ….state number of years?	2 years
